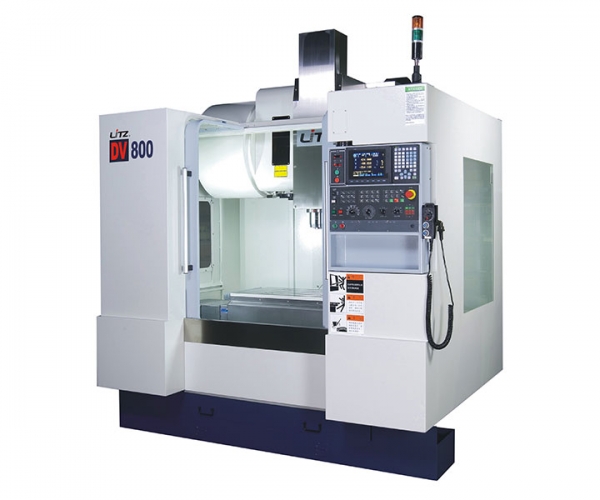

立式綜合加工中心機 DV-800
Vertical Machining Center
DV-800
Travel For 3-Axes
X-Axis Travel mm 800
Y-Axis Travel mm 500
Z-Axis Travel mm 540
Spindle Nose To Workable Surface mm 150~690
Spindle
Spindle Speed rpm 10000
Automatic Tool Changing System
Number of Tools one of a pair 24
Max. Tool Diameter mm 80/125
Max. Tool Length mm 270
Max. Tool Weight kg 8
Tool Changing Method   Arm
Tool Specifications   BBT-40
Motor
Spindle Motor (Continuous/30min. Rated) kw(HP) 7.5/11(10/15)
Motors On X/Y/Z-Axis kw 2.0/2.0/3.5
Worktable
Worktable Area mm 910X500
Worktable Max. Load Capacity kg 500
T-Slot (Number X Width X Distance From The Center) mm 5 x 18 x 100
Rapid Speed
X-Axis Rapid Speed M/min 36
Y-Axis Rapid Speed M/min 36
Z-Axis Rapid Speed M/min 24
Cutting Feed Rate mm/min 1-20000
Controller
Mitsubishi   M80
Miscellaneous
Machine Weight kg 5300
Power Consumption KVA 20
Coolant Tank Capacity L 290
Compressed Air Source kg/cm2 6
  • Standard
  • Options
  • Upon Request
  • Spindle
    • Spindle Speed 10000RPM
    • Spindle Speed 15000RPM
    • Spindle Oil Cooler
    • Coolant Through Spindle (CTS)
    • Spindle Air Seal System
    • Spindle Head Coolant Cooling System
  • Cooling System
    • Spindle External Programmable Air Blow System
    • Stop Block For Oil Feed Tool Holder
    • Programmable Coolant Nozzle
    • Splash Ring (Arm Type Only )
    • Coolant Cooling System
  • Chip Removal
    • Chip Auger Inside The Machine
    • Chip Conveyor
    • Chip Cart
    • Water Gun
    • Air Gun
    • Wash Down Device
    • Hood For The Top Of The Machine
    • Full Enclosure
  • Measuring System
    • Infrared Tool Breakage Detection
    • Tool Length Measurement System
    • Workpiece Measurement System
    • CCD Measurement System
  • Production And Workshop
    • Production Management And Network Service
    • Human-Machine Interface – Intelligent Machine
    • Oil Mist Collector
  • Oil/Coolant Separator
    • Disc Type Oil/Coolant Separator
    • Machine Oil/Coolant Separation System
  • ATC System
    • Automatic Tool Changer Mechanism (ATC)
    • Taper BT-40
    • Arm Type Tool Magazine 24T
  • 3 Axes Transmission
    • 3-Axes Coolant Thru Ballscrew (CTB)
    • 3 Axes Roller Type Linear Guideways
    • 3 Axes Linear Scales
    • Z Axis Motor System W/ Brake
  • Control
    • Mitsubishi M80
    • FANUC 0i-MF
    • Siemens 828D
  • Electrical
    • Worklight
    • Alarm Light
    • M30 Automatic Power Off System
    • Heat Exchanger
    • Air Conditioner
  • Miscellaneous
    • 4th Axis (Rotating Table)
    • Tooling
    • DDR Embedded Motor (Mitsubishi System Only)
